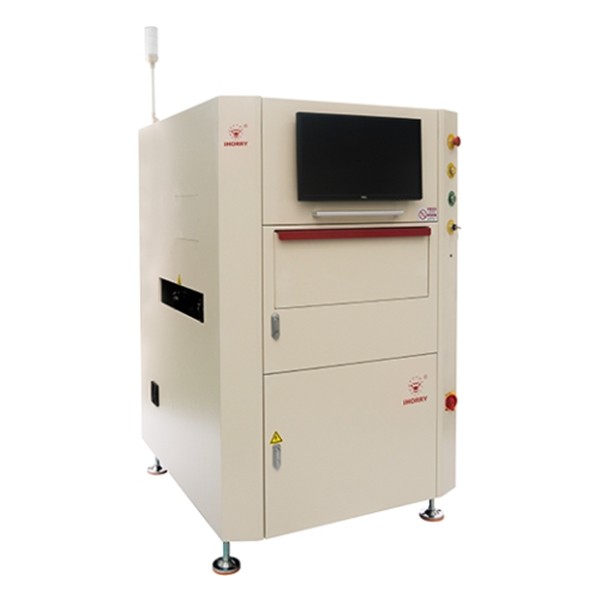

High resolution automatic optical inspection machine: HOLLY LX520IL-SE

High resolution automatic optical inspection machine: HOLLY LX520IL-SE

Equipment capacity


PCB size: 50x50 mm -520x480 mm


PCB thickness: 0.3mm~4mm


PCB warpage:<3mm


Part height: Top ≤ 25mm, Bottom ≤ 40mm


Resolution: 13/16/19 μ m






Process capability


Accurate positioning<20 microns


0201LRC


0.3mm pitch QFP& μBGA


3-point-Comparison system


0.00
0.00


Equipment capacity


PCB size: 50x50 mm -520x480 mm


PCB thickness: 0.3mm~4mm


PCB warpage:<3mm


Part height: Top ≤ 25mm, Bottom ≤ 40mm


Resolution: 13/16/19 μ m






Process capability


Accurate positioning<20 microns


0201LRC


0.3mm pitch QFP& μBGA


3-point-Comparison system
