Equipment Center

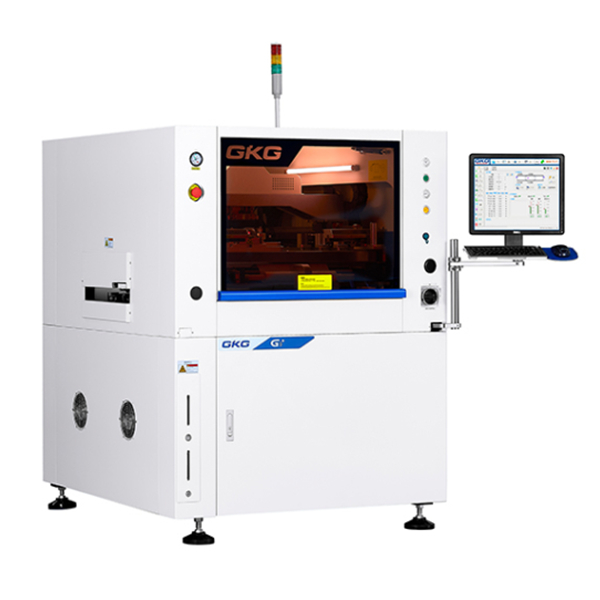

Fully automatic high-precision printing machine: GKG

Fully automatic high-precision printing machine: GKG

Equipment capacity


System alignment accuracy and repeatability accuracy: ± 12.5um@6 σ, CPK ≥2.0


Actual solder paste printing repeatability accuracy: ± 18um@6 σ, CPK ≥2.0


Printing cycle time ≤ 8.5 s


Semi automatic steel mesh loading


Ability to handle standard size boards: 450 x340mm ~ 50x50mm






Process capability


Process accuracy: ± 25 um ,CPK >2.0 @ 3 σ


0.3mm pitch QFP& μBGA


0.15mm PAD to PAD


Steel mesh thickness 0.06~0.15 mm


Single chip process technology


Staircase printing


0.00
0.00


Equipment capacity


System alignment accuracy and repeatability accuracy: ± 12.5um@6 σ, CPK ≥2.0


Actual solder paste printing repeatability accuracy: ± 18um@6 σ, CPK ≥2.0


Printing cycle time ≤ 8.5 s


Semi automatic steel mesh loading


Ability to handle standard size boards: 450 x340mm ~ 50x50mm






Process capability


Process accuracy: ± 25 um ,CPK >2.0 @ 3 σ


0.3mm pitch QFP& μBGA


0.15mm PAD to PAD


Steel mesh thickness 0.06~0.15 mm


Single chip process technology


Staircase printing
